Home >> Product >> Railway Cable >> Signalling & Control CableCCTSST-FR0.3 n×4×1.4
Applications :
- The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards :
- RENFE E.T. 03.365.051.6
 |
 |

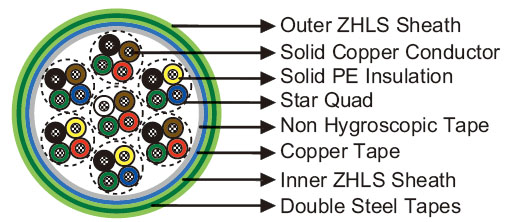

Construction :
- Conductors : Soft annealed solid copper, 1.4 mm nominal diameter.
- Insulation : PE insulation.
- Cabling Element : Four insulated conductors are twisted together to form a quad.
- Stranding : Quads are helically stranded in concentric layers.
- Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
- Screen : Copper tapes with overlap (protection against interference).
- Inner Sheath : LSZH sheath, coloured green.
- Armour : Two layers steel tape (0.8mm thick).
- Outer Sheath : LSZH sheath, coloured green.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 1.4 Maximum Conductor Resistance Ω/km 11.7 Minimum Insulation Resistance @500 V DC MΩ.km 35000 Mutual Capacitance @800Hz nF/km 45 Capacitance Unbalance @800Hz K1 maximum individual value pF/460m 250 K9-12 maximum individual value pF/460m 250 ea1/2 maximum individual value pF/460m 1200 Test Voltage @50Hz 1min Core to Core Veff 2100 Core to Screen Veff 2500 Reduction Factor @100V/km 50Hz 0.3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 10 × OD.
- Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.6mm Insulated Wire | |||||
| RS/CCTSST-FR0.3-2Y(K)HBH-1Q1.4 | 1 | 1.5 | 1.6 | 19.0 | 880 |
| RS/CCTSST-FR0.3-2Y(K)HBH-3Q1.4 | 3 | 1.5 | 1.6 | 27.1 | 1440 |
| RS/CCTSST-FR0.3-2Y(K)HBH-5Q1.4 | 5 | 1.5 | 1.6 | 31.0 | 1826 |
| RS/CCTSST-FR0.3-2Y(K)HBH-7Q1.4 | 7 | 1.5 | 1.6 | 33.1 | 2090 |
| RS/CCTSST-FR0.3-2Y(K)HBH-10Q1.4 | 10 | 1.7 | 1.8 | 38.4 | 2640 |
| RS/CCTSST-FR0.3-2Y(K)HBH-14Q1.4 | 14 | 1.7 | 1.8 | 42.2 | 3168 |
| RS/CCTSST-FR0.3-2Y(K)HBH-19Q1.4 | 19 | 1.8 | 2.0 | 47.2 | 3861 |
 |
 |
 |
 |
 |
 |
 |
UV Resistant |
Anti Induction |
Water Resistant |
Rated Voltage |
Buried in Ciround |
Laid In conduit |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
